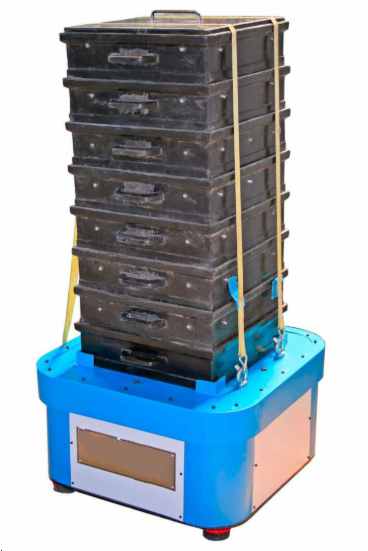

ROM Sieve Shaker

ROM Sieve Shaker
Make Dinesh Scientific
Model DS-SS-50
TECHNICAL SPECIFICATION:DESCRIPTION:
The ROM Sieve Shaker is a heavy-duty vibrating sieve system specifically designed for batch-wise size analysis of coarse and lump
materials in mining and geological laboratories. Ideal for materials like geological ores, bauxite, coal, and limestone, the system
ensures efficient separation and classification of particles ranging from 125 mm to 3 mm. It operates on a batch principle with a
robust vibrating mechanism, offering reliable performance in material testing environments.
SALIENT FEATURES:
Suitable for size analysis of coarse and run-of-mine (ROM) materials.
Compatible with various geological and mineral samples including iron ore, coal,
bauxite, quartz.
Batch operation mode allows processing of 40–50 kg of sample at once.
Fitted with 6 screen trays + 1 collecting pan for particle classification.
Tray dimensions: 400 mm x 400 mm x 150 mm with stainless steel (SS) wire mesh.
Operates with vibrating mechanism driven by adjustable counterbalanced motor.
Frame constructed from durable polyurethane, fitted with tensioning tie belts.
Particle size range: 125 mm to 3 mm (screen sizes: 125, 100, 80, 50, 30, 20, 10, 6, and 3
mm).
Controlled operation via digital timer to ensure consistency and uniform efficiency.
Industrial-grade motor: 3 HP, 1500 RPM, powered by 415V, 3-phase connection.PARAMETER VALUE
Purpose Designed for particle size analysis of large or lump samples from
run-of-mine materials
Sample Material Suitable for geological samples such as bauxite, laterite, khondalite,
iron ores, quartz, limestone, dolomite, coal, coke, and shale
Operation Mode Operates in batch mode for controlled processing
Capacity Accommodates 40 to 50 kg of sample material per batch
Drive Mechanism Equipped with a bottom-mounted vibrating motor and an
adjustable counterbalance-driven shaft
Screening Capacity Supports 6 sieve trays along with 1 collection pan in each batch
Screening Range Efficiently screens particles ranging from 125 mm down to 3 mm
Screen Sizes (mm) Includes sieve sizes: 125, 100, 80, 50, 30, 20, 10, 6, and 3 mm
Tray Dimensions Each tray measures 400 mm in width, 400 mm in length, and 150
mm in height
Tray Construction Made from durable polyurethane frames with stainless steel wire
mesh inserts
Tray Arrangement Trays are stacked vertically and secured using two side-mounted tie
belts with proper tensioning
Control System Features timer-based control for consistent and repeatable sieving
cycles
Power Supply Operates on a 3 HP motor at 1500 RPM, 415V, 3-phase with neutral
and earth connections
Motor Vibro Motor
