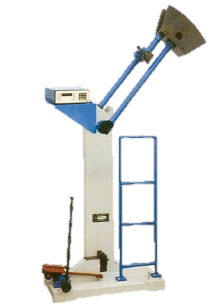

PENDULUM CHARPY IMPACT TESTING SYSTEM
MAKE DINESH SCIENTIFIC MODEL DS-ITM-400

DESCRIPTION:
An automatic impact testing machine is designed for determining the impact resistance of materials such as metals, plastics, and composites under controlled conditions. It operates with an automated system to ensure high accuracy, repeatability, and operator safety. The machine typically consists of a robust frame, a high-energy pendulum or striker, and a digital control system for automated test execution. It is capable of conducting Charpy and Izod impact tests as per international standards like ASTM, ISO, and EN. The automation includes motorized pendulum lifting, automatic specimen positioning, and data acquisition with graphical analysis.

FEATURE:
 Auto release: the pendulum swings downward to shatter the specimen and display the reading in joules on the digital monitor.
 Completely automated
 A machine cover with an enclosure that has interlocking doors
 A high-resolution encoder that can read energy absorbed below 1 J.
 HMI with a touch screen.
 Data logging from USB output.
 Touchscreen operation done by hand.
 Features for calibration.
 The generation of new files
 T ester Auto Impact,
 The pendulum lifts, loads the specimen, and releases itself automatically.
 The antifriction bearings support the pendulum.
 Using safety enclosures for whole safety operation

TECHNICAL DETAILS:
MODEL DS-ITM-400
Capacity of the Pendulum Charpy Impact System (Joules): Impact energy capacity is 400 Joules.
Impact Velocity (m/s) > 5 meters per second.
Scale Graduation (Joules): Graduated in 2-joule intervals for precise readings.
The distance between anvils, or span length, is 40 mm with a tolerance of ±0.05 mm.
Charpy Strikers Radius R Fitted with strikers of both R2 and R8 mm in radius.
Manual Switch or Start Button to Start the Impact Test Fitted with a manual switch or button to initiate the test.
Corner Radius of Machine Anvil corners have a radius of 1 mm with a tolerance of ±0.05 mm.
Least Count of Digital Display (Joules) displays energy values with a resolution of 0.1 Joules.
Anvil Surface Roughness The surface roughness of the anvil is ≤ 0.1 micrometers.
Pendulum Auto-Return, Lock & Stop After Test The pendulum automatically lifts back, locks, and halts after completing the test.
