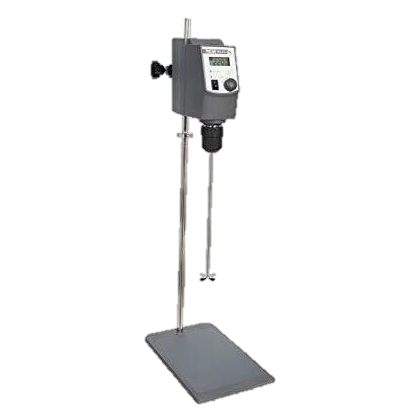

Laboratory Stirrer

Laboratory Stirrer
Make: Dinesh Scientific
Model: DS-LS-50
Technical Specification
Description:
This laboratory stirrer is ideal for stirring, mixing, and blending in chemical, pharmaceutical, food,
and cosmetic industries. It features a brushless DC motor for silent and efficient operation and a
microprocessor controller for accurate speed regulation. The unit offers a wide stirring capacity of up
to 40 liters and includes safety features like soft start and overload protection. The stirrer is equipped
with a durable stainless steel shaft and a 4-blade cross impeller for effective mixing.
FEATURE:
Brushless DC motor for high efficiency and low noise
LED display with microprocessor control for precise operation
Adjustable time setting up to 99 minutes
Stainless steel shaft and 4-cross blade impeller
Integrated overload protection and tachometer feedback
Soft start function for smooth stirring
Lightweight and compact with U-type stand.

Parameter Specification
Stirring Capacity 40 liters
Time Range 0 to 99 minutes
Wattage 168 watts
Type of Display LED
Stirring Shaft Length 550 mm
Application Stirring/mixing of chemical, pharmaceutical, food,
and cosmetic products
Stirring Shaft Diameter 8 mm
Speed Range 50 to 2000 revolutions per minute
Type of Base Stand U-shaped support stand
Type of Controller Microprocessor
Type of Motor Brushless DC (BLDC) motor
Impeller Diameter 100 mm
Geared Equipped with a gear mechanism
Tacho Feedback Integrated tachometer for speed feedback
Speed Control Speed is controllable
Weight 4.7 kg
Soft Start Enabled for smooth start-up
Stirring Shaft Material Made of stainless steel (SS)
Impeller Type 4 Cross blade
Motor Rating 1/8 horsepower
Motor Protection (Overload) Yes (LED Light flash, auto stop)
Chuck Size 1.5 to 10 mm
Last Parameter Recall Yes
Power Supply 230 V ±10%, 50 Hz
