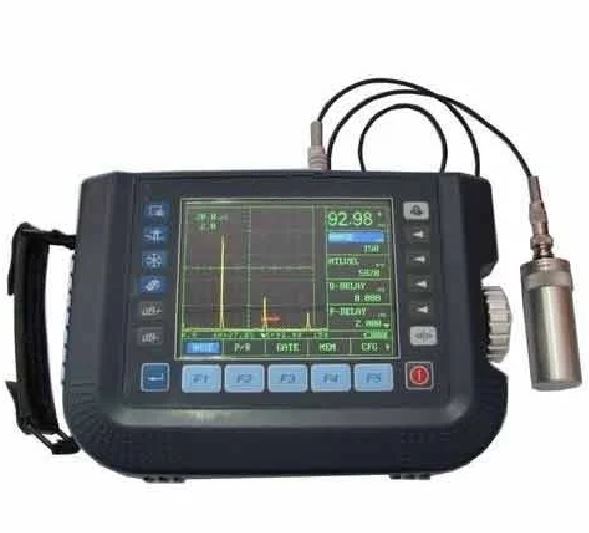

DIGITAL ULTRASONIC FLAW DETECTOR

DIGITAL ULTRASONIC FLAW DETECTOR
MAKE DINESH SCIENTIFIC
MODEL DS-DUFD-100
DESCRIPTION
A Digital Ultrasonic Flaw Detector is a non-destructive testing (NDT) device designed to detect, characterize, and evaluate flaws or discontinuities in various materials such as metals, plastics, and ceramics. It uses high-frequency sound waves (ultrasound) to detect internal flaws without damaging the test object, which makes it essential in industries like aerospace, automotive, manufacturing, and construction.

Key Features of a Digital Ultrasonic Flaw Detector:
 Digital Display and Processing: Provides a clear, high-resolution digital display for viewing ultrasonic waveforms, making analysis easier and more accurate.
 High Sensitivity: Capable of detecting small flaws at various depths, ensuring thorough inspection.
 Portable and Lightweight: Often designed to be handheld or portable for use in field inspections and confined spaces.
 Data Storage and Transfer: Enables storage of inspection data and often includes USB or wireless options for transferring data to computers for further analysis.
 Adjustable Parameters: Allows users to adjust settings like frequency, gain, and pulse width to optimize detection based on material properties.
TECHNICAL DETAILS:
MODEL DS-DUFD-100
Battery Type Smart Li-ion battery
Operating temperature -10 °C to 45 °C (14 °F to 113 °F)
Gain (dB) PAUT: 0 dB to 80 dB (Input: 550 mVp-p)
Conventional UT: 0 dB to 120 dB (Input: 34.5 Vp-p)
Pulser type Tunable, Square Wave pulse
Battery included Yes
Power supply 320 V
Bandwidth (MHz) PAUT: 0.6 MHz to 18 MHz (-3 dB)
Conventional UT: 0.22 MHz to 28 MHz (-3 dB)
Units of measurement Metric, British
Reject (FSH) linear reject 0 to 80% FSH with Visual Warning
A-scan length samples 8000
Data recording A-Scan, B-Scan, C-Scan & S-Scan
Display LCD-TFT
Damping (ohm) 400
Operating modes Transmit-receive and pulse-echo systems that work well for contact and immersion tests
Battery charger Yes
Battery Life, hours 6 Hours continuous
Test Range 3.36 mm to 13,388 mm
Transducer socket Lemo, BNC
input voltage (Vp-p) 20
Rectification Full-wave, Positive half-wave, Negative half wave, RF mode
Depth 70 millimeters
Width 236 millimeters
Height 167 millimeters
PRF 10 Hz to 2000 Hz in 10 Hz increments
Velocity (m/sec) 650 m/s to 15,000 m/s
Mode Hot Key, Fine mode
Pulse voltage For PAUT: 40 V, 80 V, 115 V
For UT: 95 V, 175 V, 340 V
Weight without Battery (Kg) 1-8 Kg
Weight with Battery (Kg) 1.8 kg
Data storage devices Internal SD, PC Interfacing, and Standard USB device
Pulse repetition freq. range 10 Hz to 2000 Hz (in 10 Hz increments)
Output RS 232C, USB
Dialog language English
Amplifier accuracy (dB) +/- 0.1
ADDITIONAL
Probe Size Probe tip diameter: 20 mm
Wedge Size AOD: 1 inch
Probe Frequency 7.5 MHz
Materials & Applications
Test Materials Mild Steel, Alloy Steel, Carbon Steel, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Brass and Brass Alloys
Applications Weld flaws, Casting flaws
