Cnc Simulator With Virtual Cnc Machines

Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
DESCRIPTION:
The CNC Simulator is an advanced, fully integrated hardware and software-based training solution, designed to provide
real-world CNC machining simulation. It replicates the environment and functionalities of actual CNC machine
controllers, enabling users to develop and test CNC programs that are directly transferrable to real machines. This
simulator is ideal for training in both CNC milling and CNC turning operations using industry-standard controller
interfaces.
SALIENT FEATURES:
Realistic simulation of CNC machine operation.
Supports training for both CNC milling and turning.
Programs developed are compatible with actual CNC machines.
Software operates independently on PCs, with or without connected
hardware.
Upgradeable to latest control versions and platforms.
Ideal for hands-on CNC programming practice in a safe, cost-effective
environment.
Enhances student learning by bridging the gap between theory and
machine application.

TECHNICAL SPECIFICATION:
PARAMETER VALUE
Product CNC Simulator
Type Complete setup of hardware and software
Purpose Training solution for CNC machining
Functionality Simulates operation of CNC controller in a real-life
environment
Operation Handling and operation similar to actual CNC machine
controller
Outcome CNC program generated with the simulator (hardware and
software) can be run on a real CNC machine
Application Training on CNC milling and turning machines
Supported CNC Controllers
Fanuc 31i Turning with Manual Guide
Fanuc 31i Milling with Manual Guide
Sinumerik 828D Turning with Shop Turn
Sinumerik 828D Milling with Shop Mill
TNC 640 Milling
Fagor 8055 Turning
Fagor 8055 Milling
Upgradeability Upgradable to latest versions
Software Capability Can run independently, including on PCs without CNC
machines
Didactic Software
Software Type Interactive didactic software
Key Attributes User-friendly, efficient, secure, all-round solution for
computerized training
Core Functionalities
Broadcast/share screen with classroom
Control student access
Evaluate student work
Share audio & video
Lock screens
Share files
Chatting/Message Transfer
Views Available
Normal View, Monitor Mode, Audio View, Q&A View, Web
View, Application View, Survey View, Print View, IM View,
Device View, Typing View, Whiteboard View
Training Mode Offline training
Seats Provided 25 seats
Controller Licenses Included
Sinumerik Operate 828D Turn/Mill with Shopturn and
Shopmill
Series 31i Turn/Mill
TNC 640 M
Fagor 8055 Turn/Mill
3D Graphic Simulation Software Licenses for 25 seats (Turning/Milling) included
Console
System Type On-screen control keyboard with interchangeable controller
key modules
Purpose Simplifies operation and enhances didactic value by
mimicking original controller layout
Compatibility Designed for respective CNC controller families/types
Training Console Design Suitable for CNC milling and turning machines
Key Components On-screen interchangeable control systems
Machine control keyboard
Touch Screen Monitor
Screen Size 23 inches
Display Type LCD/LED
Display Panel Diagonal Size 550 mm
Effective Display Area (W × H) 520 mm × 290 mm
Backlight Technology LED
Display Resolution 1920 × 1080 pixels
Display Brightness 250 nits
Touch Interface Full touch sensitive
Touch Technology Capacitive
Number of Touch Points 10
Response Time 5 milliseconds
Operating System Compatibility Windows 10
HDMI Ports 1
USB 2.0 Ports 1
Power Supply Voltage (AC) 100–240 Volts
Power Consumption 23 Watts
Operating Temperature Range 0–50 °C
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
Console
Unit Type Desktop-type console unit
Display Touch Screen
Processing Built-in Data Processing Unit
Hardware Design Sheet metal fabricated console unit
Machine Control keyboard
Application Designed for milling and turning machines
Control Elements
Axis buttons
Feed override knob (0–120%)
Machine operation keys: REF (Reference), EDIT, AUTO,
MDI, JOG, INC mode
Base Unit Interface USB
Keyboard Type Machine Control Keyboard as a single integrated unit
Software Compatibility Compatible with all listed control software families
Data Processing Unit
CPU Intel Celeron 1.5 GHz
RAM 4 GB DDRL
Storage (HDD) 120 GB
Graphics Intel HD Graphics
Operating System Windows 10
Audio Port Available (Audio Out / Mic-In)
USB Ports 4
HDMI Port 1
VGA Port 1
LAN Port RJ45 – 1
Wi-Fi Available
System Type Offline CNC Simulator Module
Purpose Hardware and software-based training solution for CNC
machining
Simulation Capability Simulates real-life CNC controller operation and handling
Program Compatibility CNC program generated on the setup can run on the same
version of CNC machine without editing
Included Controller Licenses
31i Turning with Manual Guide
31i Milling with Manual Guide
Sinumerik 828D Turning with ShopTurn
Sinumerik 828D Milling with ShopMill
TNC 640 Milling
Fagor 8055 Turning
Fagor 8055 Milling
3D Simulation 3D Graphic Simulation Software Licenses included
CONTROLLER Families / Types
31i Turn Turning
31i Mill Milling
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
Sinumerik 828D Turn with ShopTurn Turning
Sinumerik 828D Mill with ShopMill Milling
TNC 640 Mill Milling
Fagor 8055 Turning Turning
Fagor 8055 Milling Milling
CNC Offline Programming Software
System Type Offline Programming Station
Keypad Interchangeable keys for respective controller family/type
Simulation 2D/3D graphic simulation with zooming facility
Error Handling Detailed error messages about programming faults/errors
Program Generation Main programs, subroutines, tool data register, and
workpiece management auto-stored
Control System PC-based control for Turning and Milling
Supported Operations Linear, circular, helical, thread interpolation, pocketing
Operating System Support Compatible with latest Microsoft Windows OS
License Type Key-based Perpetual License
Turning Controller Programming 2-axis (X, Z) and 3-axis (X, Z, C)
Milling Controller Programming 3, 4, and 5-axis
Following cycle supported on 31i CNC MILLING CONTROLLER
Drilling Cycles
Chip Break Drilling Cycle Drilling with chip breaking pattern
Cancel Drilling Cycle Cancels active drilling cycle
Drilling Cycle Standard drilling operation
Drilling Cycle with Dwell Time Drill with a dwell/pause at bottom
Deep Hole Drilling Cycle For deeper holes with pecking
Drilling Cycle with Spindle Stop Stops spindle during drilling
Pack Drilling Cycle Peck drilling for chip removal
Drilling Cycle with Program Stop Stops program after drill cycle
Tapping and Reaming
Taping Cycle Thread tapping operation
Reaming Cycle Precision hole finishing
Reaming Cycle with Dwell Time Ream with dwell/pause
Coordinate & Sub-Program
Scale / Mirror Factor Apply scaling or mirroring
Coordinate System ON Activate coordinate system
Coordinate System OFF Deactivate coordinate system
Call Sub Program Call a defined subroutine
End Sub Program End of subroutine
Advanced Programming
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
Macro Programming User-defined logic and variables
CNC Simulator
Type Industrial Type CNC Simulator
Keyboard Panel On-screen touch keyboard panel with interchangeable
keyboard for specified controller families/types
Keyboard Module Type Industrial type interchangeable programming module
(Digitizer type not accepted)
Programming Function Keys Vertically placed to replicate industrial machine control
panels
Feed Override Knob Adjustable from 0% to 120%
Mode Select Key Modes include: Reference, EDIT, AUTO, MDI, JOG, INC
USB Interface Available for PC connectivity
Control Display On-screen display of control-specific and machine keyboard
Operation Interface Mouse or touch screen monitor
Configuration Easy and quick to configure
Hardware Controls Includes axis buttons, feed override switch,
Following cycle supported on 31i – CNC TURNING
CONTROLLER
Finishing cycle
Turning cycle,
Facing cycle,
Pattern repeating
Boring Cycle
Grooving cycle
Threading cycle
Cancel drilling cycle
Drilling cycle
Tapping cycle
Reaming cycle
Call Sub programming
End Sub program
CNC Offline programming Software
Interface On-screen Touch Keyboard with interchangeable keymodules
for respective Controller family/type
Graphic Simulation 2D/3D graphics with zooming facility
Error Handling Displays detailed error messages for programming
faults/errors
Program Generation Main programs, subroutines, tool data register, and
workpiece management auto-stored
Control System PC-based control for Turning and Milling
Supported Operations Linear, circular, helical and thread interpolation, Pocket
Operating System Support Microsoft Windows operating system
License Type Perpetual License
Advanced Turning Programming “C” axis programming on CNC lathes
Advanced Milling Programming “5th” axis programming on CNC milling machines
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
Following cycle supported on SINUMERIK 828D CNC
TURINING CONTROLLER
Drilling, centering
Drilling, counter boring
Deep-hole drilling
Cycle (deep-hole drilling)
Cycle (rigid tapping without using a floating tap holder)
Rigid tapping without using a floating tap holder
Tapping with floating tap holder
Recessing cycle
Undercutting cycle
Stock removal cycle
Thread undercut cycle
Thread cutting cycle
Chaining of threads
Following cycle supported on SINUMERIK 828D CNC
MILLING CONTROLLER
Contour milling
Surface milling
Drilling, centering
Drilling, counter boring
Deep-hole drilling
Rigid tapping without using a
floating tap holder
Tapping with floating tap holder
Hole circle
Thread milling
Slots on a circle
Rectangular pocket milling cycle
Circular pocket milling cycle
Special rectangular pocket milling
cycle
Special circular pocket milling
cycle
Following cycle support on TNC 640 – CNC MILLING CONTROLLER
Drilling/Thread Cycles Drilling, Tapping, Thread Milling
Milling Cycles Pocket / Studs / Slots Cycle
Hole Pattern Cycles Pattern Cycle for Machining Hole Patterns
Complex Contours SL-Cycle
Multipass Milling Multipage Cycle
Coordinate Transformation Coordinate Transformation Cycle
Special Cycles Well Type, Program Calls, Oriented Spindle Stop
Basic Commands Line: L, Chamfer: CHF, Circle Center: CC, Circle: C, Circle by
Radius: CR, Corner Rounding: RND
Advanced Contour Programming Free Contour Programming: FK
User Interface Window Oriented, Modern User Interface
Contour Milling CONTOUR Milling Cycles
Contour Finishing – Depth CONTOUR FINISHING DEPTH Cycles
Contour Finishing – Side CONTOUR FINISHING SIDE Cycles
Transformation Functions MIRRORING, ROTATION
Helical Interpolation Helix
Datum / Coordinate Setting DATUM SETTING
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
SL Cycles (Advanced) SL Cycles
Control Interface Horizontal and Vertical Control via Soft Keys (Heidenhainlike
UI)
Following cycle support on FAGOR 8055 – MILLING
CONTROLLER
ISO Programming
Positioning
Face Milling Cycle
Contour Profile
Pocket 2D
Rectangular Boss
Round Boss
Simple Pocket
Rectangular Pocket
Circular Pocket
Boring
Reaming
Tapping
Drilling
Following cycle support on FAGOR 8055 – TURNING
CONTROLLER
ISO Programming
Positioning Cycle
Turning Cycle
Facing Cycle
Profiling Cycle
Profiling Cycle ZC
Threading Cycle
Rounding Cycle
Grooving Cycle
Cut-off Cycle
Drilling Cycle
Tapping Cycle
Slot Milling
Virtual CNC Machine for Trainers
Turning (Hardware Panel) 1
Milling (Hardware Panel) 1

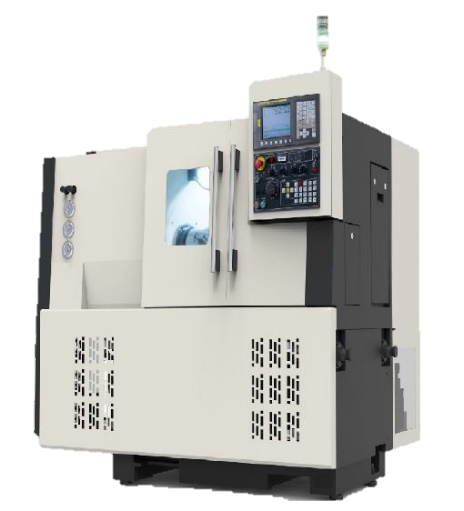

Type Stand-alone floor-mounted, machine-look Virtual CNC
Machine Operation Simulator
Application Educational system
Controller Options Built-in Fanuc OR Siemens controller
Panel Type Hardware type (Onscreen, touch key, or digitizer type not
accepted)
Programming Operation Panel Hardware panel with all function keys and knobs
Machine Control Panel Hardware panel with all function keys and knobs
Display Panel Details 7″ TFT Screen with all Function Keys
Machine Panel Details All control keys including Emergency Button, Feed, Spindle
Button/Key available
55 INCHES TOUCH INTERACTIVE FLAT PANEL, EACH VIRTUAL CNC MACHINE
Technology Smart Touch Technology
Functions Write, Save, and E-mail
Device Type Interactive Whiteboard and Pen
Connectivity Mobile Connectivity
Display Resolution 4K UHD Resolution or USB Type-C Connectivity
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
HDCP Support HDCP Activated
Memory RAM: 4 GB, ROM: 64 GB
Control Axes 2 Axis (X, Z) on Turning; 3 Axis (X, Y, Z) on Milling
Operation Mode Keys REF, AUTO, EDIT, MDI, JOG, MPG
Switches and Keys
Emergency Stop, Edit Lock, Cycle Start & Stop, Reset,
Spindle Start/Stop, Tool Change, Coolant On/Off, Program
Editing, Spindle Speed Increase/Decrease
Feed Rate Override Feed rate override knob
Hand Control Hand wheel
Alarm Conditions Alarms displayed for cycle start without closing door, tool
collision, axis over-travel
Graphics Simulation 3D graphics simulation with rotation, zoom, pan of
machine views
Code Simulation Simulate G-codes, M-codes, canned cycles, subprograms
Setup Simulation Simulate part mounting, tool offsets, work offsets using
industry methods
Machining Simulation Shows flow of chips, coolant with realistic machining
sounds
Tooling Able to add Turning, Milling, Threading, Drilling tools
Configurability CNC Lathes/Mills configurable with different turret
capacity
Maintenance Simulation Software
Feature Description
Construction CNC machine with freely layout electric components on a
virtual board
Supported CNC Systems FANUC, Siemens Turning and Milling Control systems
Fault Setting & Training Teacher can set model faults to train students in fault
finding
Assembly & Decomposition Supports assembly and decomposition of CNC turning and
milling machines
Electric Components Layout Electric components can be freely arranged/layout on the
virtual board
Connection Check Visible connection checks between components
Parameter Setting Electric component parameter settings available
Fault Model Marking Ability to mark the checked fault model
Fault Diagnosis Fault diagnosis with various measuring tools (e.g.,
multimeter)
CNC Turning Machine Details Detailed structure, operating principles, operation
methods, and fault detection of CNC Turning machine
Detailed Displays
Display of CNC Turning machine parts, working principles,
electrical system function, numerical control system
operation, and fault exclusion
Circuit Running Principle Introduction to circuit running principle, system
connections, system parameters
Parameter Simulation Simulation of actual parameter setting processes and their
effects
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
Modular CNC Kits -1 Number
Product Modular CNC Kit – 1 Number
Form CKD Kit, Modular system allowing countless configurations
and CNC applications
Motors Slides equipped with 2A stepper motors
Applications Reproduction of work pieces, processing of 3D solid models
Assembly Assemble and disassemble with 2-axis turning, 3 & 4-axis
milling
Number of Axes 4
Drive Steppers, 2A, 1.8°
Max Positioning Speed 300 mm/min
Travel X-axis on Milling 145 mm
Travel Z/Y on Milling 50 mm
Travel X-axis on Turning 50 mm
Travel Z-axis on Turning 145 mm
Increment Rotation Axis 360°
Spindle Speed 4000 rpm
Controller Software Pre-installed software for loading, manipulating,
processing ISO standard G-code files
Controller Features Editable tool table, tool path simulation, manual and
training book for CNC and G-code programming
Supported OS Windows 7, 8, 10
Connectivity USB, Ethernet
Minimum Controllable Axes 4
Additional IOs 6x inputs (limit/end switches), 1x E-stop, 2x relays, 0-10V
control signal
Microsteps 16
Controller Board Specs 1 GHz CPU, 512 MB DDR3 RAM, 4 GB storage
Power Supply External, 110-240 V AC input, 24 V DC, 5 A output
Additional Requirements Bidder to quote PC suitable for Modular CNC Kits
Lab Equipment Features Easily transportable, easy to set up, plug and play
Following controller families / types in the Pre load on
VIRTUAL CNC MACHINE Panel with machine Control
keyboard.
3 li Turning with Manual Guide
3 li Milling with Manual Guide
Sinumerik 828D Turning with Shop Turn
Sinumerik 828D Milling with Shop Mill
TNC 640-Milling Fagor 8055 Turning
Fagor 8055 Milling 3D graphic simulation software
licenses
DATA PROCESSING UNIT
CPU Intel i5 Processor
RAM 8GB DDR4
Storage (HDD/SSD) 500 GB SSD
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
Graphics Intel HD Graphics
Operating System Windows 10 Operating System
Audio Port Available
USB Ports 4
HDMI Port 1
VGA Port 1
Audio I/O Ports Audio Out / Mic-In
LAN 1 × RJ45
Wi-Fi Available
UPS Power backup for 15 minutes
Cnc Simulator With Virtual Cnc Machines
Make Dinesh Scientific
Model DS-CNC-550
